ADUM130D1BRZ - Analog Devices

Description: Analog Devices ADUM130D1BRZ PCB SMT 3-channel Digital Isolator, 3 kVrms, 16-Pin SOIC N

Download ADUM130D1BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

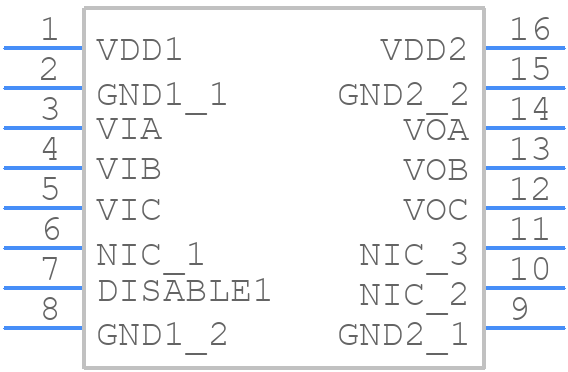

ADUM130D1BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM130D1BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADUM130D1BRZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADUM130D1BRZ Details

  • Manufacturer Part Number:

    ADUM130D1BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM130D1BRZ Frequently Asked Questions (FAQs)

  • The ADUM130D1BRZ can operate over a temperature range of -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, the use of noise filters and common-mode chokes can help to reduce electromagnetic interference (EMI).
  • It is recommended to use a 0.1 μF ceramic capacitor in parallel with a 10 μF electrolytic capacitor to decouple the power supply pins (VDD1 and VDD2) of the ADUM130D1BRZ. This helps to reduce noise and ensure stable operation.
  • Yes, the ADUM130D1BRZ can be used in a multi-channel isolation application. However, it is essential to ensure that each channel is properly isolated and that the power supplies for each channel are separate to maintain isolation.
  • To troubleshoot issues with the ADUM130D1BRZ, start by verifying the power supply voltages, checking for proper signal connections, and ensuring that the device is properly configured. If issues persist, consult the datasheet and application notes for guidance, or contact Analog Devices Inc. support for further assistance.
