ADUM131D0BRWZ - Analog Devices

Description: Analog Devices ADUM131D0BRWZ PCB SMT 3-channel Digital Isolator, 3750 Vrms, 16-Pin SOIC

Download ADUM131D0BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

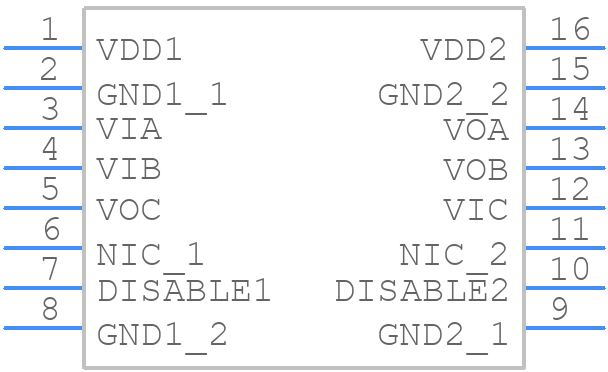

ADUM131D0BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM131D0BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM131D0BRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM131D0BRWZ Details

  • Manufacturer Part Number:

    ADUM131D0BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM131D0BRWZ Frequently Asked Questions (FAQs)

  • The ADUM131D0BRWZ can operate over a temperature range of -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, consider using noise-filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
  • It is recommended to use a 0.1 μF ceramic capacitor in parallel with a 10 μF electrolytic capacitor to decouple the power supply pins (VDD1 and VDD2) of the ADUM131D0BRWZ. This helps to reduce noise and ensure stable operation.
  • Yes, the ADUM131D0BRWZ can be used in multi-channel isolation applications. However, it is essential to ensure that each channel is properly isolated and that the power supplies and grounds are separated to maintain isolation between channels.
  • To troubleshoot issues with the ADUM131D0BRWZ, start by verifying the power supply connections and ensuring that the input signals are within the specified range. Check the output voltage levels and signal integrity using an oscilloscope. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM131D0BRWZ Overview

Use the download button to access the ADUM131D0BRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM1, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
