ADUM142E1BRZ-RL7 - Analog Devices

Description: Digital Isolator CMOS 4-CH 150Mbps 16-Pin SOIC N T/R

Download ADUM142E1BRZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

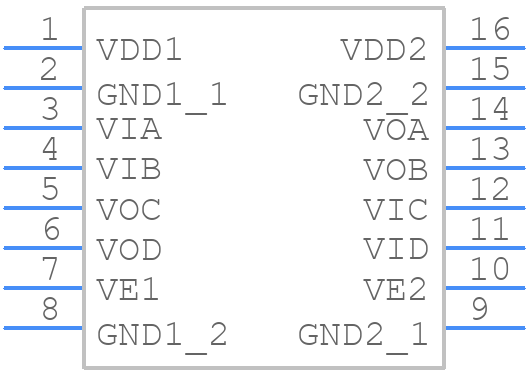

ADUM142E1BRZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM142E1BRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADUM142E1BRZ-RL7 - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADUM142E1BRZ-RL7 Details

  • Manufacturer Part Number:

    ADUM142E1BRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT ALSO OPERATES AT 2.5, 3.3, 5 V

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM142E1BRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM142E1BRZ-RL7 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM142E1BRZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • The ADUM142E1BRZ-RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, or ESD bag, and avoiding direct contact with the device's pins. Additionally, the device should be powered down during assembly and testing to prevent damage from ESD events.
  • To troubleshoot issues with the ADUM142E1BRZ-RL7, start by checking the power supply voltage, ensuring that it's within the specified range. Next, verify that the input and output circuits are properly connected and that there are no shorts or opens. Use an oscilloscope to check the output voltage and signal integrity. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support team for assistance.
  • When using the ADUM142E1BRZ-RL7 in a safety-critical application, it's essential to follow proper design and verification procedures to ensure the device meets the required safety standards. This includes performing thorough testing and validation, using redundant or fault-tolerant designs, and following relevant safety standards such as IEC 61508 or ISO 26262. Additionally, consult with Analog Devices' technical support team to ensure that the device is used within its specified operating conditions and that any necessary safety certifications are obtained.
