ADUM210N1BRIZ-RL - Analog Devices

Description: General Purpose Digital Isolator 5000Vrms 1 Channel 150Mbps 75kV/µs CMTI 8-SOIC (0.295", 7.50mm Width)

Download ADUM210N1BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

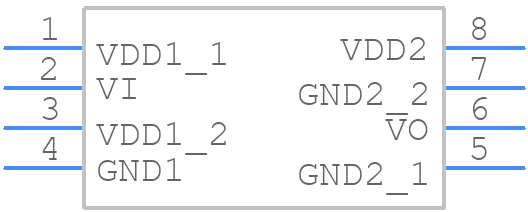

Symbol
ADUM210N1BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM210N1BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-8-1
click to zoom
3D Models
ADUM210N1BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-8-1
click to zoom

ADUM210N1BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM210N1BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ADUM210N1BRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM210N1BRIZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM210N1BRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM210N1BRIZ-RL is capable of supporting data rates up to 100 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achievable may depend on the specific application, PCB layout, and signal quality.
  • Yes, the ADUM210N1BRIZ-RL is designed to meet the requirements of safety-critical applications, such as those found in industrial control systems, medical devices, and automotive systems. It has been certified to meet various safety standards, including IEC 60601-1, IEC 61010-1, and UL 1577.
  • To troubleshoot issues with the ADUM210N1BRIZ-RL, start by verifying the power supply and input signals, then check the PCB layout and signal routing for any potential issues. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM210N1BRIZ-RL Overview

Use the download button to access the ADUM210N1BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs
