ADUM220N1BRWZ - Analog Devices

Description: Robust 5.0 kV rms Dual Channel Digital Isolator & 0 Reverse Channels & 7.8mm Creepage

Download ADUM220N1BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

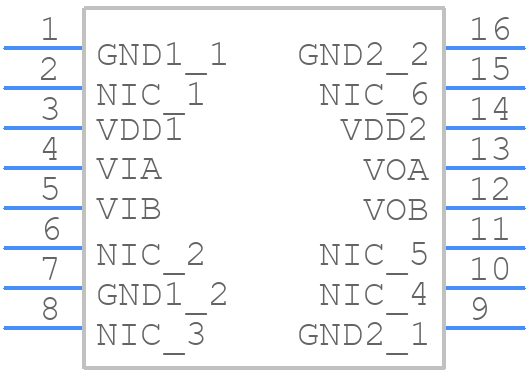

Symbol
ADUM220N1BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM220N1BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADUM220N1BRWZ
click to zoom
3D Models
ADUM220N1BRWZ - Analog Devices - 3D model - Small Outline Packages - ADUM220N1BRWZ
click to zoom

ADUM220N1BRWZ Details

  • Manufacturer Part Number:

    ADUM220N1BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM220N1BRWZ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM220N1BRWZ is -45°C to 140°C, but it's recommended to operate it within -40°C to 125°C for optimal performance.
  • To ensure reliable operation in high-temperature environments, make sure to follow proper thermal design and layout guidelines, and consider using a heat sink or thermal management system to keep the device within its operating temperature range.
  • The typical power consumption of the ADUM220N1BRWZ is around 5mA, but it can vary depending on the operating frequency, voltage, and other factors. Refer to the datasheet for more information on power consumption.
  • When the ADUM220N1BRWZ is not in use, it's recommended to tie the output voltage to GND or a pull-down resistor to prevent voltage fluctuations and ensure reliable operation when the device is re-enabled.
  • For optimal performance, it's recommended to follow proper PCB layout and design guidelines, including keeping the device away from noise sources, using a ground plane, and minimizing signal traces and vias. Refer to the datasheet and application notes for more information.
