ADUM2211SRIZ-RL - Analog Devices

Description: Digital Isolators 5kV DUAL-CHANNEL DIGITAL ISOLATORS

Download ADUM2211SRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

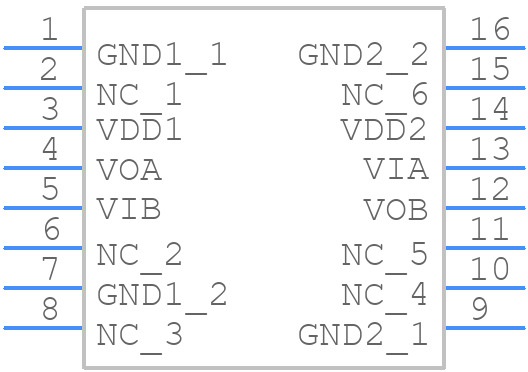

ADUM2211SRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM2211SRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)-ren1
click to zoom
3D Models
ADUM2211SRIZ-RL - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)-ren1
click to zoom

ADUM2211SRIZ-RL Details

  • Manufacturer Part Number:

    ADUM2211SRIZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:50.263

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM2211SRIZ-RL Frequently Asked Questions (FAQs)

  • The ADUM2211SRIZ-RL can operate over a temperature range of -40°C to 125°C, but the junction temperature should not exceed 150°C.
  • To ensure reliable operation in high-noise environments, use proper PCB layout techniques, such as separating the input and output circuits, using ground planes, and minimizing trace lengths. Additionally, consider using shielding and filtering to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence is to power up the VDD1 and VDD2 supplies simultaneously, ensuring that both supplies are within their specified voltage ranges before applying any input signals.
  • Yes, the ADUM2211SRIZ-RL can be used in multi-channel isolation applications. However, each channel must have its own isolated power supply and ground return to ensure proper isolation between channels.
  • To troubleshoot issues with the ADUM2211SRIZ-RL, start by verifying the power supply voltages, checking for proper input signal levels, and ensuring that the device is operated within its specified temperature range. Also, review the PCB layout and design to ensure that it meets the recommended layout guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM2211SRIZ-RL Overview

Use the download button to access the ADUM2211SRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs
