ADUM2285BRIZ-RL - Analog Devices

Description: ► High isolation voltage: 5000 V rms ► Up to 100 Mbps data rate ► Low propagation delay: 24 ns maximum ► Low dynamic power consumption ► Bidirectional communication ► 3 V to 5 V level translation ► High temperature operation: 125°C ► High common-mode transient immunity: >25 kV/μs ► Default high output: ADuM2280/ADuM2281 ► Default low output: ADuM2285/ADuM2286 ► 16-lead SOIC wide body enhanced creepage package ► Safety and regulatory approvals ► UL recognition: 5000 V rms for 1 minute per UL 1577

Download ADUM2285BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

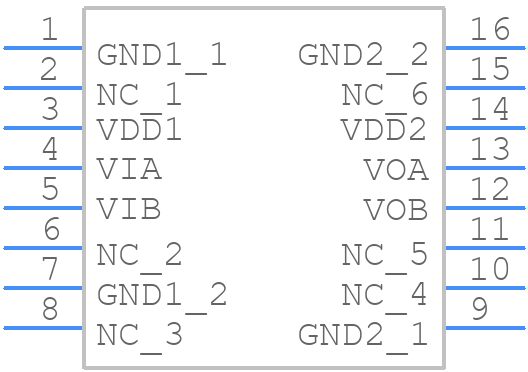

ADUM2285BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM2285BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)
click to zoom
3D Models
ADUM2285BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)
click to zoom

ADUM2285BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM2285BRIZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:50.368

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.75 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM2285BRIZ-RL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM2285BRIZ-RL is -40°C to 125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, consider using noise-filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM2285BRIZ-RL is to power up the VDD1 and VDD2 supplies simultaneously, followed by the logic inputs. This ensures proper initialization of the device and prevents potential latch-up conditions.
  • If the ADUM2285BRIZ-RL is not recognized by the system, check the power supply connections, ensure that the device is properly soldered, and verify that the logic inputs are properly configured. Also, check the system's clock frequency and ensure it is within the recommended range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • The maximum data rate that can be achieved with the ADUM2285BRIZ-RL is up to 150 Mbps, depending on the specific application and system requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM2285BRIZ-RL Overview

Use the download button to access the ADUM2285BRIZ-RL schematic symbol, PCB footprint, and 3D model.
