ADUM230E0BRWZ - Analog Devices

Description: Analog Devices ADUM230E0BRWZ PCB SMT 3-channel Digital Isolator, 5 kVrms, 16-Pin SOIC W

Download ADUM230E0BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

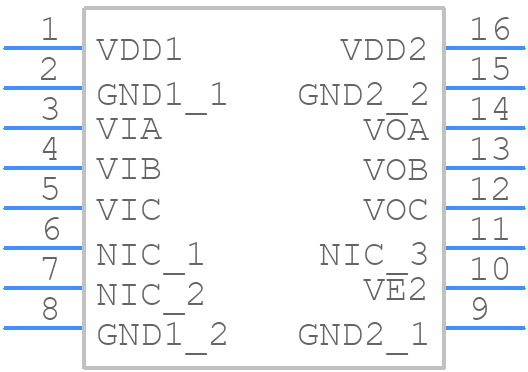

ADUM230E0BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM230E0BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16
click to zoom
3D Models
ADUM230E0BRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16
click to zoom

ADUM230E0BRWZ Details

  • Manufacturer Part Number:

    ADUM230E0BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM230E0BRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM230E0BRWZ should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM230E0BRWZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM230E0BRWZ is capable of supporting data rates up to 100 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achievable may depend on the specific application, PCB layout, and signal quality.
  • Yes, the ADUM230E0BRWZ is designed to meet the requirements of safety-critical applications, such as those found in industrial control systems, medical devices, and automotive systems. It has been certified to meet various safety standards, including IEC 60601-1, IEC 61010-1, and UL 1577.
  • To troubleshoot common issues with the ADUM230E0BRWZ, start by verifying the power supply and signal connections. Check for proper signal termination, and ensure that the device is operated within its specified voltage and temperature ranges. Use oscilloscopes or logic analyzers to debug signal integrity issues, and consult the datasheet and application notes for guidance on troubleshooting specific problems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM230E0BRWZ Overview

Use the download button to access the ADUM230E0BRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
