ADUM230E1BRIZ - Analog Devices

Description: Digital Isolators IC,Robust 3 ch ISO 3:0 ch

Download ADUM230E1BRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

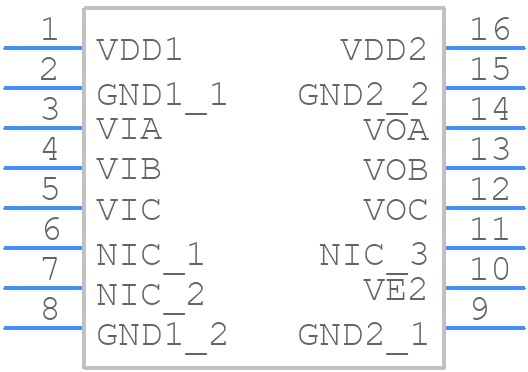

ADUM230E1BRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM230E1BRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_IC
click to zoom
3D Models
ADUM230E1BRIZ - Analog Devices - 3D model - Small Outline Packages - SOIC_IC
click to zoom

ADUM230E1BRIZ Details

  • Manufacturer Part Number:

    ADUM230E1BRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Date Of Intro:

    2016-04-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM230E1BRIZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM230E1BRIZ should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM230E1BRIZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM230E1BRIZ can support data rates up to 100 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
  • Yes, the ADUM230E1BRIZ is designed to meet the requirements of safety-critical applications, such as industrial control systems, medical devices, and automotive systems. It has been certified to meet various safety standards, including IEC 60601-1, IEC 61010-1, and UL 1577. However, it's essential to consult the datasheet and relevant safety standards to ensure compliance with specific application requirements.
  • To troubleshoot common issues with the ADUM230E1BRIZ, it's recommended to follow a systematic approach, including checking the power supply, signal integrity, and PCB layout. Additionally, using oscilloscopes or logic analyzers can help identify signal quality issues or data corruption. Consult the datasheet and application notes for more information on troubleshooting techniques.
