ADUM231E0BRIZ - Analog Devices

Description: Digital Isolators IC,Robust 3 ch ISO 2:1 ch

Download ADUM231E0BRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

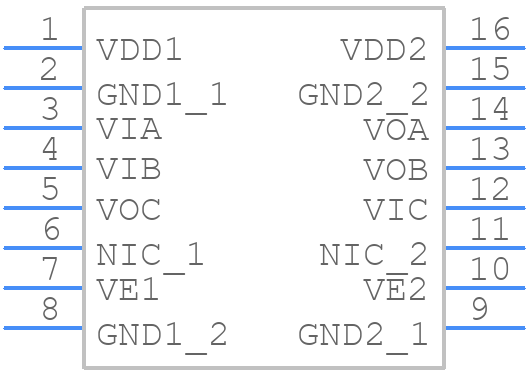

ADUM231E0BRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM231E0BRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-2 (SOIC)
click to zoom
3D Models
ADUM231E0BRIZ - Analog Devices - 3D model - Small Outline Packages - RI-16-2 (SOIC)
click to zoom

ADUM231E0BRIZ Details

  • Manufacturer Part Number:

    ADUM231E0BRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Date Of Intro:

    2016-04-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM231E0BRIZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM231E0BRIZ involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM231E0BRIZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources.
  • The ADUM231E0BRIZ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe tools.
  • Yes, the ADUM231E0BRIZ can be used in redundant or fault-tolerant systems. Its digital isolator architecture makes it suitable for applications that require high reliability and fault tolerance.
  • To troubleshoot issues with the ADUM231E0BRIZ, start by checking the power supply voltages, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the digital signals, and consult the datasheet and application notes for guidance.
