ADUM231E1BRWZ-RL - Analog Devices

Description: Digital Isolators IC,Robust 3 ch ISO 2:1 ch

Download ADUM231E1BRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

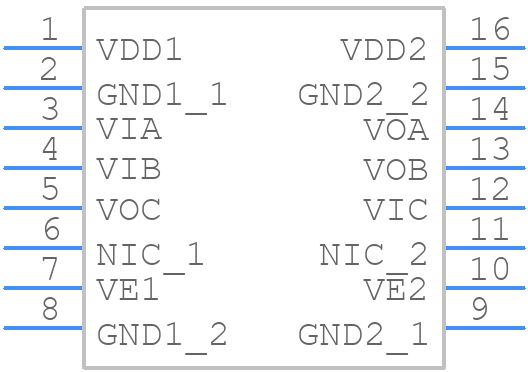

ADUM231E1BRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM231E1BRWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM231E1BRWZ-RL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM231E1BRWZ-RL Details

  • Manufacturer Part Number:

    ADUM231E1BRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM231E1BRWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM231E1BRWZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM231E1BRWZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM231E1BRWZ-RL is designed to handle high common-mode voltages up to 1 kV peak. However, it's essential to ensure that the common-mode voltage does not exceed the maximum rating, as this can lead to reduced isolation performance or even device failure. Additionally, the system designer should consider the impact of common-mode voltage on the overall system noise and signal integrity.
  • To troubleshoot issues with the ADUM231E1BRWZ-RL, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check for any signs of physical damage, such as cracks or burn marks, and ensure that the device is properly soldered to the PCB. Use a logic analyzer or oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADUM231E1BRWZ-RL is designed to provide 2.5 kV rms isolation voltage, which is suitable for many industrial and medical applications. However, if the system requires a higher isolation voltage, the designer should consider using a different isolation device or adding additional isolation components to ensure the required level of isolation is achieved.
