ADUM2400BRIZ-RL - Analog Devices

Description: ► Low power operation ► 5 V operation ► 1.0 mA per channel maximum @ 0 Mbps to 2 Mbps ► 3.5 mA per channel maximum @ 10 Mbps ► 31 mA per channel maximum @ 90 Mbps ► 3 V operation ► 0.7 mA per channel maximum @ 0 Mbps to 2 Mbps ► 2.1 mA per channel maximum @ 10 Mbps ► 20 mA per channel maximum @ 90 Mbps ► Bidirectional communication ► 3 V/5 V level translation ► High temperature operation: 105°C ► High data rate: dc to 90 Mbps (NRZ) ► Precise timing characteristics ► 2 ns maximum pulse width di

Download ADUM2400BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

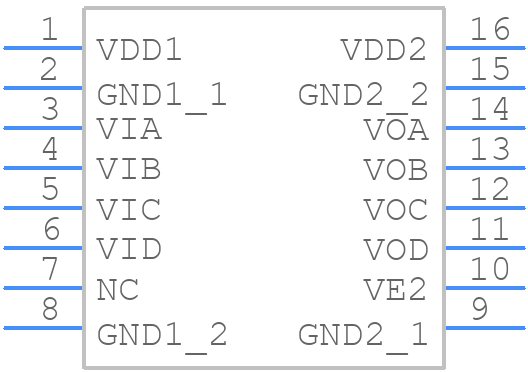

ADUM2400BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM2400BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)
click to zoom
3D Models
ADUM2400BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)
click to zoom

ADUM2400BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM2400BRIZ-RL

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM2400BRIZ-RL Overview

Use the download button to access the ADUM2400BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
