ADUM242D1BRWZ - Analog Devices

Description: Analog Devices ADUM242D1BRWZ PCB SMT, 4-channel Digital Isolator 150Mbit/s, 5 kVrms, 16-Pin SOIC W

Download ADUM242D1BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

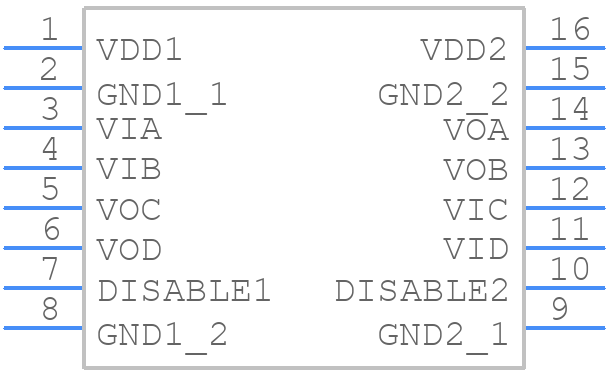

ADUM242D1BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM242D1BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM242D1BRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM242D1BRWZ Details

  • Manufacturer Part Number:

    ADUM242D1BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM242D1BRWZ Frequently Asked Questions (FAQs)

  • The ADUM242D1BRWZ can operate over a temperature range of -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, the use of bypass capacitors and ferrite beads can help to filter out noise.
  • The recommended power-up sequence for the ADUM242D1BRWZ is to power up the VDD1 and VDD2 supplies simultaneously, followed by the logic inputs. This helps to prevent latch-up and ensures reliable operation.
  • Yes, the ADUM242D1BRWZ can be used in a multi-channel isolation application. However, it is recommended to use separate isolation channels for each signal to maintain isolation between channels.
  • To troubleshoot issues with the ADUM242D1BRWZ, start by verifying the power supply voltages and ensuring that the device is properly powered up. Check the input and output signals using an oscilloscope to identify any signal integrity issues. Also, review the PCB layout and ensure that it meets the recommended layout guidelines.
