ADUM260N0BRIZ-RL - Analog Devices

Description: Robust 5.0 kVrms Six Channel Digital Isolator w/ Fail-Safe & 0 Reverse Channels

Download ADUM260N0BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

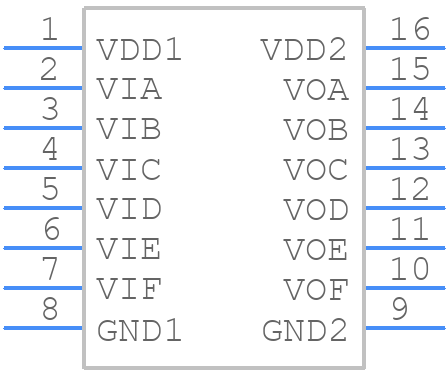

ADUM260N0BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM260N0BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_IC
click to zoom
3D Models
ADUM260N0BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - SOIC_IC
click to zoom

ADUM260N0BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM260N0BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM260N0BRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM260N0BRIZ-RL involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable communication, it's essential to follow the recommended layout and routing guidelines, use a common mode filter on the input side, and implement a robust communication protocol that can handle errors and retries. Additionally, consider using a clock synchronization mechanism to ensure data transmission integrity.
  • When powering the ADUM260N0BRIZ-RL, ensure that the input voltage is within the recommended range (3.15 V to 5.5 V), and use a low-dropout regulator (LDO) to minimize power supply noise. Also, consider adding decoupling capacitors to filter out high-frequency noise and ensure a stable power supply.
  • To troubleshoot issues with the ADUM260N0BRIZ-RL, start by verifying the power supply voltage and checking for any signs of physical damage or overheating. Use an oscilloscope to inspect the signal waveforms and verify that the input and output signals are within the specified voltage ranges. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADUM260N0BRIZ-RL has a maximum junction temperature of 125°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider using thermal interface materials to improve heat transfer between the device and the heat sink.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM260N0BRIZ-RL Overview

Use the download button to access the ADUM260N0BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
