ADUM261N0BRIZ-RL - Analog Devices

Description: Robust 5.0 kVrms Six Channel Digital Isolator w/ Fail-Safe & 1 Reverse Channel

Download ADUM261N0BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

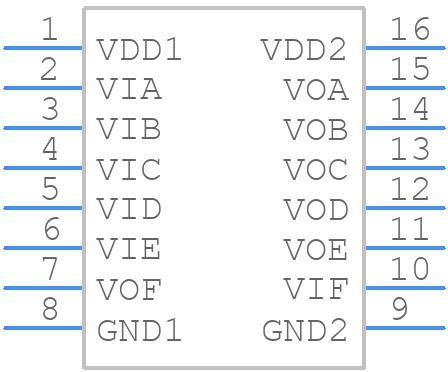

ADUM261N0BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM261N0BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-2 (SOIC)
click to zoom
3D Models
ADUM261N0BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-16-2 (SOIC)
click to zoom

ADUM261N0BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM261N0BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM261N0BRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM261N0BRIZ-RL involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM261N0BRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and minimizing power consumption. Additionally, consider using a thermally enhanced package or a heat sink to reduce the junction temperature.
  • The ADUM261N0BRIZ-RL has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
  • To troubleshoot issues with the ADUM261N0BRIZ-RL, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals using an oscilloscope, and verify that the device is properly configured. If the issue persists, consult the datasheet and application notes, and consider contacting Analog Devices' technical support for further assistance.
  • When using the ADUM261N0BRIZ-RL in a safety-critical application, it's essential to follow a rigorous design and verification process to ensure the device meets the required safety standards. This includes performing failure modes and effects analysis (FMEA), fault tree analysis, and other safety-related tests. Additionally, consider using redundant or duplicated systems to ensure continued operation in the event of a failure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM261N0BRIZ-RL Overview

Use the download button to access the ADUM261N0BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
