ADUM3123CRZ - Analog Devices

Description: Analog Devices ADUM3123CRZ PCB SMT Digital Isolator, 3000 Vrms, 8-Pin SOIC

Download ADUM3123CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

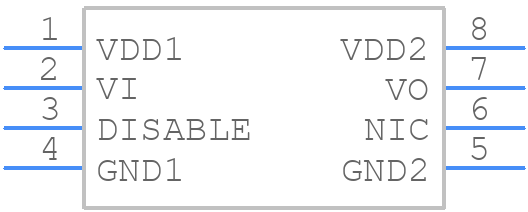

ADUM3123CRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3123CRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADUM3123CRZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADUM3123CRZ Details

  • Manufacturer Part Number:

    ADUM3123CRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.064 µs

  • Turn-on Time:

    0.064 µs

  • Width:

    3.9 mm

ADUM3123CRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3123CRZ involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM3123CRZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • The ADUM3123CRZ is capable of supporting data rates up to 150 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achieved may depend on the specific application, PCB layout, and signal integrity.
  • Yes, the ADUM3123CRZ is designed to meet the requirements of safety-critical applications, such as those found in industrial, medical, and automotive systems. It has been certified to meet various safety standards, including UL 1577, IEC 60747-5-2, and DIN VDE 0884-11.
  • To troubleshoot common issues with the ADUM3123CRZ, start by checking the power supply voltage, signal integrity, and PCB layout. Ensure that the device is properly powered, and the input and output signals are within the specified voltage ranges. Also, check for any signs of physical damage, such as overheating or electrical overstress. If the issue persists, consult the datasheet and application notes for further guidance.
