ADUM3160WBRWZ-RL - Analog Devices

Description: Digital Isolators USB Digital Isolator 2.5KV

Download ADUM3160WBRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

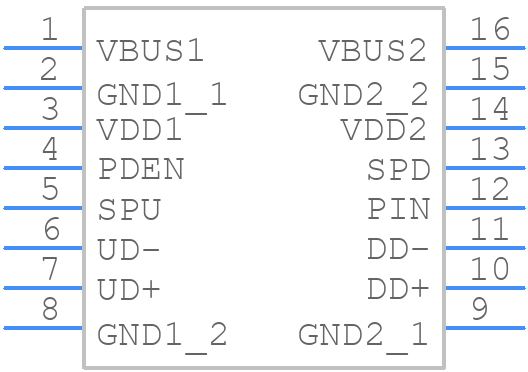

ADUM3160WBRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3160WBRWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM3160WBRWZ-RL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM3160WBRWZ-RL Details

  • Manufacturer Part Number:

    ADUM3160WBRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM3160WBRWZ-RL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM3160WBRWZ-RL is -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, consider using noise-filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
  • It is recommended to use a 0.1 μF ceramic capacitor in parallel with a 10 μF electrolytic capacitor for power supply decoupling. This helps to reduce noise and ensure stable operation.
  • Yes, the ADUM3160WBRWZ-RL is designed to meet the requirements of safety-critical applications, such as those requiring IEC 60601-1 or IEC 61508 certification. However, it is essential to follow proper design and testing procedures to ensure compliance with relevant safety standards.
  • To troubleshoot issues with the ADUM3160WBRWZ-RL, start by checking the power supply voltage, ensuring that it is within the recommended range. Then, verify that the input and output signals are within the specified voltage ranges. Use an oscilloscope to check for signal integrity and noise. If issues persist, consult the datasheet and application notes, or contact Analog Devices Inc. support for further assistance.
