ADUM3166BRSZ-RL - Analog Devices

Description: 3.75 kV RMS Digital Isolators for Isolated USB 2.0 High, Full, and Low Speed

Download ADUM3166BRSZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

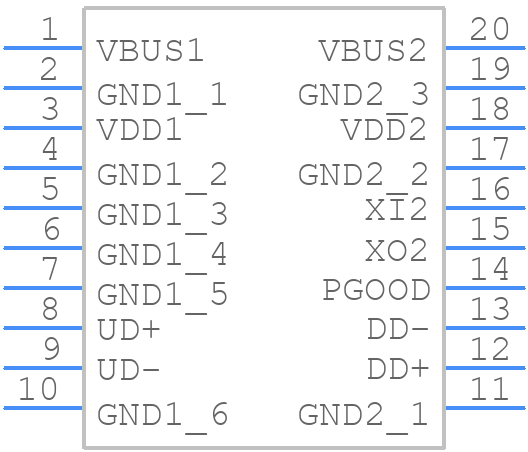

Symbol
ADUM3166BRSZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3166BRSZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20_2023__
click to zoom
3D Models
ADUM3166BRSZ-RL - Analog Devices - 3D model - Small Outline Packages - RS-20_2023__
click to zoom

ADUM3166BRSZ-RL Details

  • Manufacturer Part Number:

    ADUM3166BRSZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADUM3166BRSZ-RL Frequently Asked Questions (FAQs)

  • The ADUM3166BRSZ-RL can support data rates up to 150 Mbps, but the actual data rate may vary depending on the specific application and system design.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
  • To minimize EMI and noise, it is recommended to follow good layout and routing practices, such as keeping the signal traces short and away from noise sources, using ground planes and shielding, and avoiding vias and layer changes in the signal path.
  • To troubleshoot issues with the ADUM3166BRSZ-RL, it is recommended to follow a systematic approach, such as checking the power supply and signal integrity, verifying the correct configuration and setup, and using diagnostic tools such as oscilloscopes and logic analyzers to identify the root cause of the issue.
  • The ADUM3166BRSZ-RL is a general-purpose isolator and is not specifically designed or certified for use in safety-critical applications. However, it can be used in such applications if proper design and testing procedures are followed to ensure the required level of safety and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3166BRSZ-RL Overview

Use the download button to access the ADUM3166BRSZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
