ADUM3190ARQZ-RL7 - Analog Devices

Description: Isolation Amplifiers 2.5kV High Stability Isolated Error Amp

Download ADUM3190ARQZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

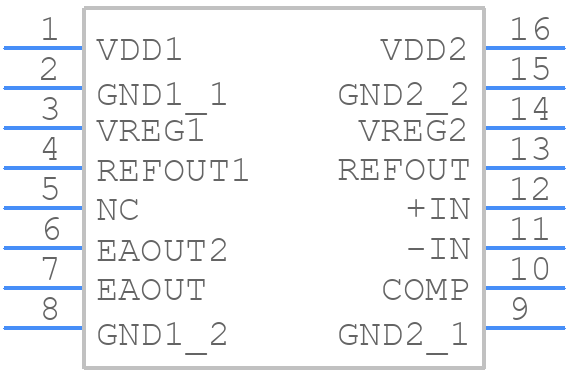

ADUM3190ARQZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3190ARQZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16
click to zoom
3D Models
ADUM3190ARQZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RQ-16
click to zoom

ADUM3190ARQZ-RL7 Details

  • Manufacturer Part Number:

    ADUM3190ARQZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:50.492

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    200 MHz

  • Common Mode Voltage-Max:

    1.5 V

  • Common-mode Reject Ratio-Nom:

    72 dB

  • Isolation Voltage-Min:

    2500 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    24 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Max:

    1.1

  • Voltage Gain-Min:

    0.9

  • Width:

    3.91 mm

ADUM3190ARQZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3190ARQZ-RL7 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM3190ARQZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
  • The recommended input termination scheme for the ADUM3190ARQZ-RL7 is a 100-ohm differential termination, while the recommended output termination scheme is a 50-ohm single-ended termination. However, the optimal termination scheme may vary depending on the specific application and signal requirements.
  • To troubleshoot common issues with the ADUM3190ARQZ-RL7, start by verifying the power supply voltage and ensuring that it's within the recommended range. Then, check the signal integrity by monitoring the input and output signals using an oscilloscope. If the issue persists, check the PCB layout and termination schemes to ensure they are optimal for the application.
  • Operating the ADUM3190ARQZ-RL7 at frequencies above 100 MHz may result in reduced signal integrity, increased power consumption, and potential device overheating. It's essential to carefully evaluate the device's performance and thermal characteristics before operating it at frequencies above 100 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3190ARQZ-RL7 Overview

Use the download button to access the ADUM3190ARQZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Isolation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
