ADUM3190TRQZ-RL7 - Analog Devices

Description: Isolation Amplifiers 2.5kV High Stability Isolated Error Amp

Download ADUM3190TRQZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

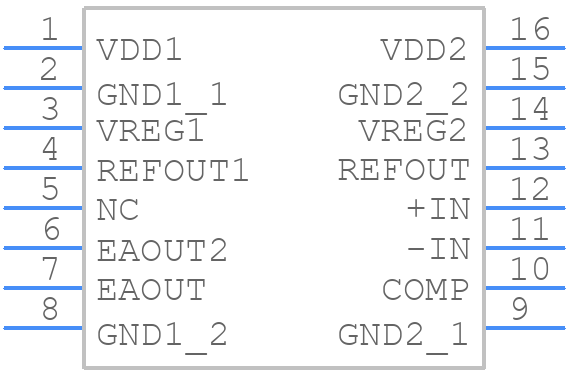

ADUM3190TRQZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3190TRQZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16 (QSOP)
click to zoom
3D Models
ADUM3190TRQZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RQ-16 (QSOP)
click to zoom

ADUM3190TRQZ-RL7 Details

  • Manufacturer Part Number:

    ADUM3190TRQZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:50.504

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    400 MHz

  • Common Mode Voltage-Max:

    1.5 V

  • Common-mode Reject Ratio-Nom:

    72 dB

  • Isolation Voltage-Min:

    2500 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    24 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Max:

    1.1

  • Voltage Gain-Min:

    0.9

  • Width:

    3.91 mm
