ADUM3190WSRQZ-RL7 - Analog Devices

Description: 2.5kV rms Isolated Error Amplifier

Download ADUM3190WSRQZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

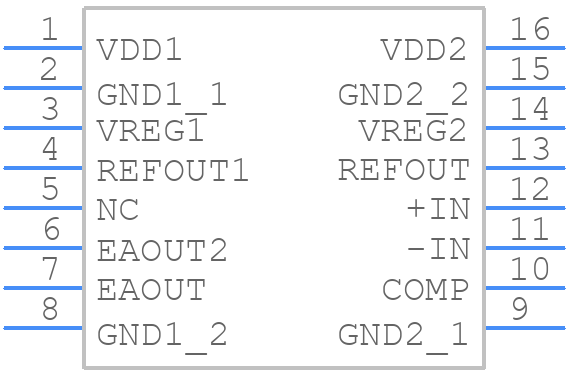

ADUM3190WSRQZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

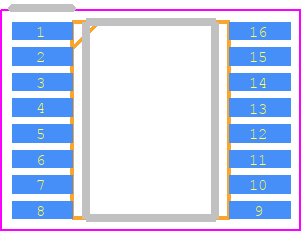

ADUM3190WSRQZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16
click to zoom
3D Models
ADUM3190WSRQZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RQ-16
click to zoom

ADUM3190WSRQZ-RL7 Details

  • Manufacturer Part Number:

    ADUM3190WSRQZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    200 MHz

  • Common Mode Voltage-Max:

    1.5 V

  • Isolation Voltage-Min:

    2500 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    24 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1.17

  • Voltage Gain-Min:

    0.83

  • Width:

    3.91 mm

ADUM3190WSRQZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3190WSRQZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM3190WSRQZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM3190WSRQZ-RL7 is designed to handle high common-mode voltages, but it's essential to ensure that the device is operated within its specified common-mode voltage range (up to 1 kV peak). Exceeding this range can lead to reduced isolation performance or even device failure. Proper system design and layout practices should be followed to minimize common-mode voltage effects.
  • To troubleshoot issues with the ADUM3190WSRQZ-RL7, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check for proper PCB layout and thermal management, and ensure that the device is operated within its specified temperature range. If issues persist, consult the datasheet and application notes, or contact Analog Devices Inc. support for further assistance.
  • The ADUM3190WSRQZ-RL7 is designed to handle high-frequency signals, but it's essential to ensure that the device is operated within its specified frequency range (up to 150 Mbps). Exceeding this range can lead to reduced isolation performance or even device failure. Proper system design and layout practices should be followed to minimize high-frequency signal effects, such as using a solid ground plane and minimizing signal trace lengths.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3190WSRQZ-RL7 Overview

Use the download button to access the ADUM3190WSRQZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Isolation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
