ADUM3190WTRQZ-RL7 - Analog Devices

Description: 2.5kV Isolator, Error Amplifier IC Shunt Regulators, Linear Power Supplies, Inverters, UPS 16-QSOP (RQ-16)

Download ADUM3190WTRQZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

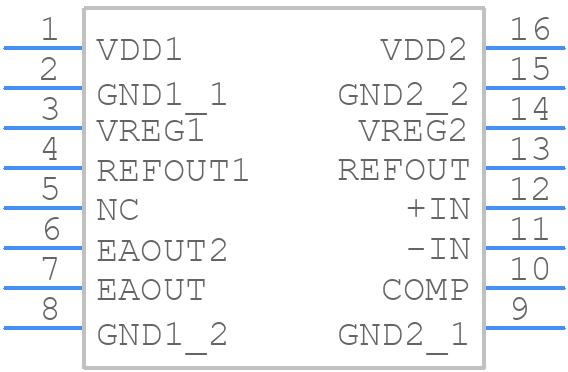

Symbol
ADUM3190WTRQZ-RL7 - Analog Devices - PCB symbol
click to zoom

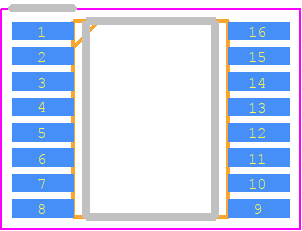

PCB Footprints
ADUM3190WTRQZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16_2024
click to zoom
3D Models
ADUM3190WTRQZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RQ-16_2024
click to zoom

ADUM3190WTRQZ-RL7 Details

  • Manufacturer Part Number:

    ADUM3190WTRQZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    400 MHz

  • Common Mode Voltage-Max:

    1.5 V

  • Isolation Voltage-Min:

    2500 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    24 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1.17

  • Voltage Gain-Min:

    0.83

  • Width:

    3.91 mm

ADUM3190WTRQZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3190WTRQZ-RL7 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM3190WTRQZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
  • The recommended input termination scheme for the ADUM3190WTRQZ-RL7 is a 50-ohm resistor in series with the input signal, while the recommended output termination scheme is a 50-ohm resistor in parallel with the output signal.
  • To troubleshoot common issues with the ADUM3190WTRQZ-RL7, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signal integrity and check for any signal reflections or ringing. Finally, check the output signal using an oscilloscope to identify any distortion or anomalies.
  • Operating the ADUM3190WTRQZ-RL7 at frequencies above 100 MHz may result in reduced signal integrity, increased power consumption, and potential device overheating. It's essential to carefully evaluate the device's performance and thermal characteristics before operating at higher frequencies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3190WTRQZ-RL7 Overview

Use the download button to access the ADUM3190WTRQZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Isolation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
