ADUM3195WBRQZ - Analog Devices

Description: Isolated Amplifier with Adjustable Gain and Single-Ended Output

Download ADUM3195WBRQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

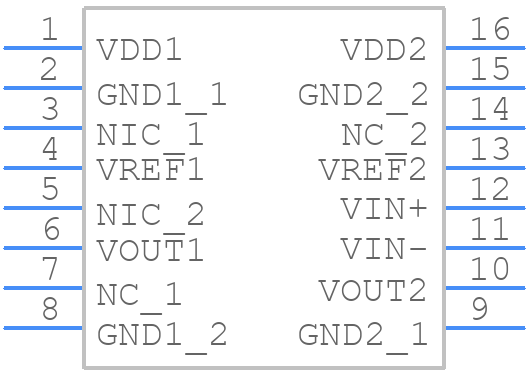

ADUM3195WBRQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3195WBRQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP 150 MIL_2023-3
click to zoom
3D Models
ADUM3195WBRQZ - Analog Devices - 3D model - Small Outline Packages - QSOP 150 MIL_2023-3
click to zoom

ADUM3195WBRQZ Details

  • Manufacturer Part Number:

    ADUM3195WBRQZ

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP 150 MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    QSOP 150 MIL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.21 MHz

  • Common Mode Voltage-Max:

    4.8 V

  • Isolation Voltage-Min:

    3000 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7.3 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    17782.79

  • Width:

    3.911 mm

ADUM3195WBRQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3195WBRQZ involves keeping the digital and analog grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM3195WBRQZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources.
  • The ADUM3195WBRQZ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD protection devices such as wrist straps and mats.
  • To troubleshoot issues with the ADUM3195WBRQZ, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Then, use a logic analyzer or oscilloscope to monitor the device's inputs and outputs, and check for any signs of damage or overheating.
  • When using the ADUM3195WBRQZ in a safety-critical application, it's essential to follow proper safety design practices, such as implementing redundant systems, using error detection and correction mechanisms, and ensuring that the device is being used within its specified operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3195WBRQZ Overview

Use the download button to access the ADUM3195WBRQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Isolation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
