ADUM3223WARZ-RL7 - Analog Devices

Description: Digital Isolators Isolated Prec Half- Bridge Driver 4A Out

Download ADUM3223WARZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

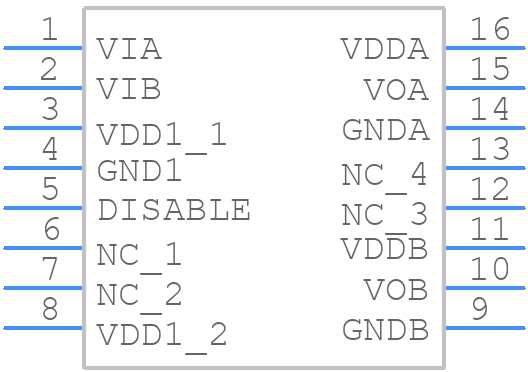

ADUM3223WARZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3223WARZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N]
click to zoom
3D Models
ADUM3223WARZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N]
click to zoom

ADUM3223WARZ-RL7 Details

  • Manufacturer Part Number:

    ADUM3223WARZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OTHER SUPPLY VOLTAGE= 4.5V TO 18V

  • Built-in Protections:

    THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM3223WARZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3223WARZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM3223WARZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM3223WARZ-RL7 can support data rates up to 100 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
  • To troubleshoot issues with the ADUM3223WARZ-RL7, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the input signals are within the specified voltage range. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the ADUM3223WARZ-RL7 is designed to meet the requirements of safety-critical applications, such as IEC 60601-1 for medical devices and IEC 61508 for industrial control systems. However, it's essential to follow proper design and testing procedures to ensure compliance with relevant safety standards and regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3223WARZ-RL7 Overview

Use the download button to access the ADUM3223WARZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Peripheral Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
