ADUM3223WBRZ-RL7 - Analog Devices

Description: Digital Isolator Logic 2-CH 1.2Mbps Automotive 16-Pin SOIC N T/R

Download ADUM3223WBRZ-RL7 Model

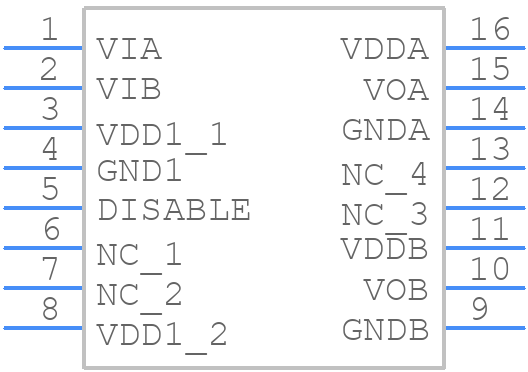

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

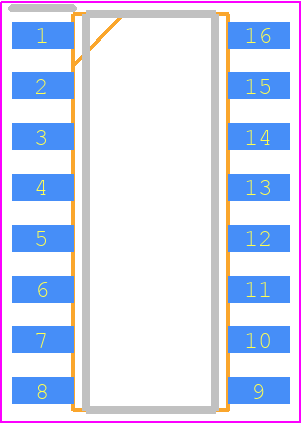

ADUM3223WBRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADUM3223WBRZ-RL7 - Analog Devices  - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADUM3223WBRZ-RL7 Details

  • Manufacturer Part Number:

    ADUM3223WBRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    OTHER SUPPLY VOLTAGE= 4.5V TO 18V

  • Built-in Protections:

    THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM3223WBRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3223WBRZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to place the device near the isolation boundary to minimize radiated emissions.
  • To ensure reliable operation of the ADUM3223WBRZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C) and derated according to the thermal derating curve provided in the datasheet.
  • The ADUM3223WBRZ-RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Additionally, the device should be connected to a grounded metal case or shield to prevent ESD events from coupling into the device. It's also recommended to use ESD-protected equipment and to follow the ESD protection guidelines provided in the datasheet.
  • To troubleshoot common issues with the ADUM3223WBRZ-RL7, start by verifying that the device is properly powered and that the input and output voltages are within the specified ranges. Check for proper PCB layout and routing, and ensure that the device is not overheating. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for troubleshooting guidelines specific to the issue being experienced.
  • The recommended input and output filtering configurations for the ADUM3223WBRZ-RL7 depend on the specific application requirements. However, as a general guideline, it's recommended to use a low-pass filter on the input side to reduce high-frequency noise and a low-pass or band-pass filter on the output side to reduce electromagnetic interference (EMI) and ensure signal integrity. The datasheet and application notes provide more detailed guidance on filtering configurations.
