ADUM3223WCRZ - Analog Devices

Description: Digital Isolator CMOS 2-CH Automotive 16-Pin SOIC N Tube

Download ADUM3223WCRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

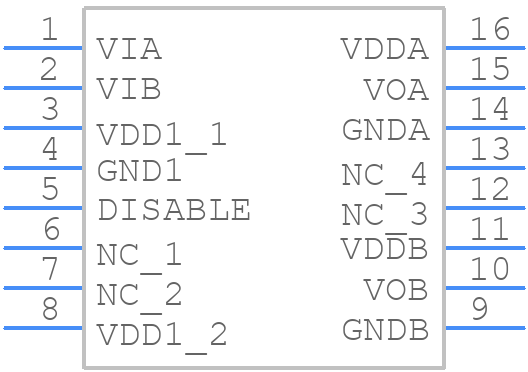

ADUM3223WCRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3223WCRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADUM3223WCRZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADUM3223WCRZ Details

  • Manufacturer Part Number:

    ADUM3223WCRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OTHER SUPPLY VOLTAGE= 4.5V TO 18V

  • Built-in Protections:

    THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM3223WCRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3223WCRZ involves keeping the input and output sides of the isolator separate, using a ground plane to reduce noise, and minimizing the length of the traces between the isolator and the power supplies. It's also recommended to use a 4-layer board with a dedicated ground plane and to avoid routing signals under the isolator.
  • To ensure reliable operation of the ADUM3223WCRZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range, and the power supply should be designed to handle the increased current consumption at higher temperatures.
  • Common failure modes of the ADUM3223WCRZ include overvoltage, overcurrent, and overheating. To mitigate these failure modes, it's essential to follow proper design and layout practices, such as using voltage regulators to limit the input voltage, adding overcurrent protection, and ensuring proper thermal management. Additionally, the device should be operated within its specified ratings, and regular maintenance and testing should be performed to detect any potential issues.
  • To troubleshoot issues with the ADUM3223WCRZ, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check the PCB layout for any potential issues, such as noise coupling or signal integrity problems. Use oscilloscopes and logic analyzers to debug the signals and identify any anomalies. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' technical support for further assistance.
  • Yes, the ADUM3223WCRZ can be used in safety-critical applications, but it's essential to follow proper design and verification practices to ensure the device meets the required safety standards. This includes performing thorough risk assessments, implementing redundant safety mechanisms, and following the guidelines outlined in the relevant safety standards, such as IEC 61508 or ISO 26262.
