ADUM4121-1BRIZ - Analog Devices

Description: Gate Drivers Iso Gate Drvr w/ Miller clamp w/o TSD

Download ADUM4121-1BRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

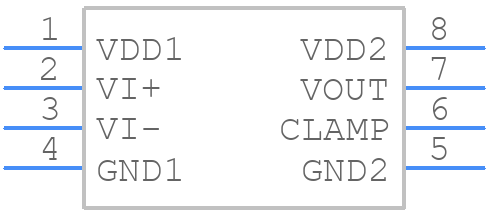

ADUM4121-1BRIZ - Analog Devices - PCB symbol
