A good PCB layout for the ADUM4121-1CRIZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to keep the input and output circuits separate to minimize noise coupling.
To ensure reliable operation of the ADUM4121-1CRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C) and derated according to the thermal derating curve provided in the datasheet.
Common failure modes of the ADUM4121-1CRIZ-RL include overvoltage, overcurrent, and excessive temperature. To mitigate these failure modes, it's essential to follow proper design and layout practices, such as using voltage clamps or surge protectors to prevent overvoltage, adding current limiting resistors to prevent overcurrent, and ensuring proper thermal management. Additionally, it's recommended to follow the recommended operating conditions and to perform thorough testing and validation of the design.
To troubleshoot issues with the ADUM4121-1CRIZ-RL, it's essential to follow a systematic approach, starting with a review of the datasheet and application notes. Check the device's operating conditions, such as voltage and current, and ensure that the device is properly powered and configured. Use oscilloscopes or logic analyzers to monitor the input and output signals, and check for any signs of noise or interference. If the issue persists, it may be necessary to perform a thorough analysis of the PCB layout and design.
Yes, the ADUM4121-1CRIZ-RL can be used in safety-critical applications, but it's essential to follow proper design and validation practices to ensure the device meets the required safety standards. This includes performing thorough testing and validation, using redundant or fault-tolerant designs, and following relevant safety standards and regulations, such as IEC 61508 or ISO 26262. Additionally, it's recommended to consult with Analog Devices' safety experts and to follow their guidelines for safety-critical applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADUM4121-1CRIZ-RL Overview

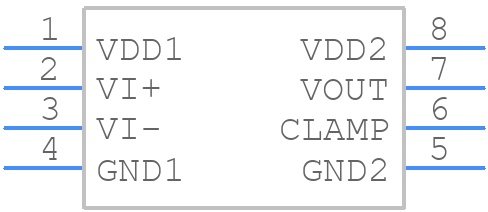

Use the download button to access the ADUM4121-1CRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4,
or try a keyword search, such as MOSFET Drivers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
