ADUM4122ARIZ - Analog Devices

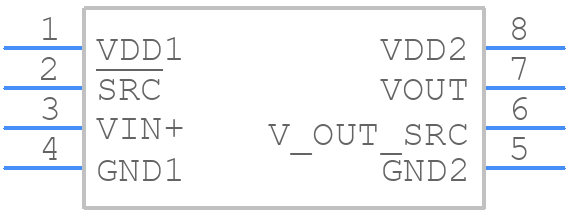

ADUM4122ARIZ Details

• Manufacturer Part Number:

  ADUM4122ARIZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  RI-8-1

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  UNDERVOLTAGE LOCKOUT

• High Side Driver:

  YES

• Input Characteristics:

  GATED

• Interface IC Type:

  AND GATE BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G8

• Length:

  7.5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  2 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2.5 mm

• Supply Current-Max:

  17 mA

• Supply Voltage-Max:

  6.5 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  35 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.048 µs

• Turn-on Time:

  0.04 µs

• Width:

  5.85 mm
