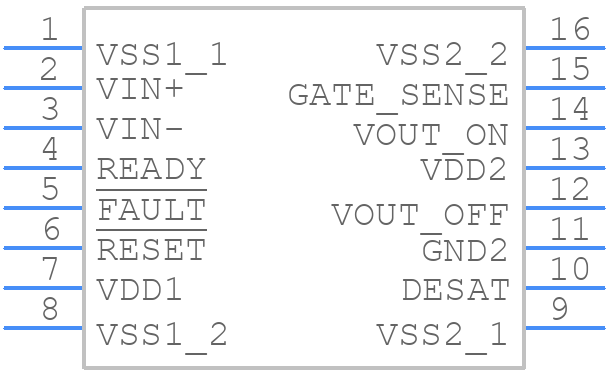

ADUM4135RWZ - Analog Devices

ADUM4135RWZ Details

• Manufacturer Part Number:

  ADUM4135RWZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  SOIC-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• Additional Feature:

  SECONDARY SIDE SUPPLY (NEG SIDE)= -15V TO 0V

• High Side Driver:

  NO

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED IGBT DRIVER

• JESD-30 Code:

  R-PDSO-G16

• Length:

  10.3 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  4 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.3 V

• Supply Voltage1-Max:

  30 V

• Supply Voltage1-Min:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.5 mm
