ADUM4153BRIZ-RL - Analog Devices

Description: 5 kV, 7-Channel, SPIsolator?? Digital Isolators for SPI (with 0/3 Aux channel directionality)

Download ADUM4153BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

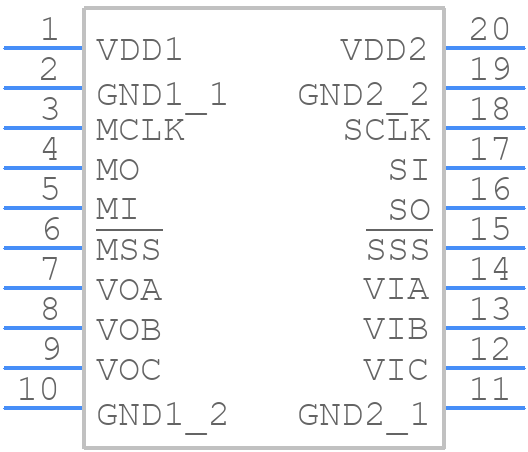

ADUM4153BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4153BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-20-1_2025
click to zoom
3D Models
ADUM4153BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-20-1_2025
click to zoom

ADUM4153BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM4153BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RI-20-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM4153BRIZ-RL Frequently Asked Questions (FAQs)

  • The ADUM4153BRIZ-RL can support data rates up to 150 Mbps, but the actual data rate may vary depending on the specific application and system design.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
  • To minimize EMI and noise, it is recommended to follow good layout and routing practices, such as keeping the signal traces short and away from noise sources, using ground planes and shielding, and avoiding vias and layer changes near the device.
  • To troubleshoot issues with the ADUM4153BRIZ-RL, it is recommended to follow a systematic approach, such as checking the power supply and clock signals, verifying the signal integrity and timing, and using diagnostic tools such as oscilloscopes and logic analyzers.
  • To ensure reliable operation, it is recommended to use proper power supply decoupling and filtering techniques, such as using bypass capacitors and ferrite beads, and following the recommended power supply layout and routing guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4153BRIZ-RL Overview

Use the download button to access the ADUM4153BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
