ADUM4154BRIZ-RL - Analog Devices

Description: 5 kV, 7-Channel, SPIsolator Multiple Peripheral, Digital Isolator for SPI

Download ADUM4154BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

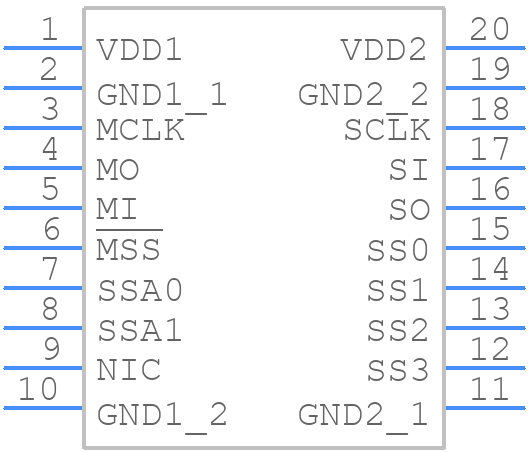

ADUM4154BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4154BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-20-1_2026
click to zoom
3D Models
ADUM4154BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-20-1_2026
click to zoom

ADUM4154BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM4154BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RI-20-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH 5 V SUPPLY VOLTAGE

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM4154BRIZ-RL Frequently Asked Questions (FAQs)

  • The ADUM4154BRIZ-RL can support data rates up to 150 Mbps, but the actual data rate may vary depending on the specific application and system design.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
  • Yes, the ADUM4154BRIZ-RL is designed for isolated power supply applications and can be used to provide isolated power to external circuits while maintaining electrical isolation between the input and output sides.
  • To troubleshoot issues with the ADUM4154BRIZ-RL, it is recommended to check the input voltage, output load, and PCB layout for any potential issues, and to consult the datasheet and application notes for guidance on proper usage and troubleshooting techniques.
  • The ADUM4154BRIZ-RL is a unique product with its own specific features and characteristics, but it is part of a larger family of digital isolators from Analog Devices. While it may share some similarities with other products, it is not directly compatible with all other digital isolators from Analog Devices.
