ADUM4166BRIZ-RL - Analog Devices

Description: 5.7kV rms Digital Isolator for Isolated USB 2.0 High Speed (Downstream Clock Input)

Download ADUM4166BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

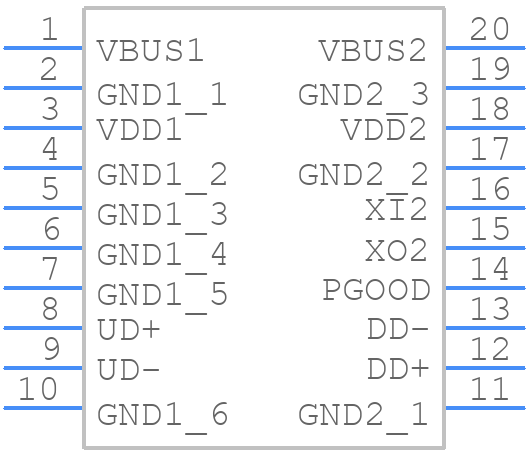

ADUM4166BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4166BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC INCREASED CREEPAGE_2024
click to zoom
3D Models
ADUM4166BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - SOIC INCREASED CREEPAGE_2024
click to zoom

ADUM4166BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM4166BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RI-20-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.69 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM4166BRIZ-RL Frequently Asked Questions (FAQs)

  • The ADUM4166BRIZ-RL can support data rates up to 150 Mbps, making it suitable for high-speed digital isolators.
  • The ADUM4166BRIZ-RL has a built-in power-up and power-down sequencing circuit that ensures the output is in a high-impedance state during power-up and power-down, preventing unwanted output transitions.
  • The typical propagation delay of the ADUM4166BRIZ-RL is around 10 ns, making it suitable for high-speed digital isolator applications.
  • Yes, the ADUM4166BRIZ-RL is designed to operate in harsh industrial environments, with a wide operating temperature range of -40°C to 125°C and high immunity to electromagnetic interference (EMI).
  • The ADUM4166BRIZ-RL has a high common-mode transient immunity of 50 kV/μs, making it suitable for applications where high-voltage transients are present.
