ADUM4177WBRNZ - Analog Devices

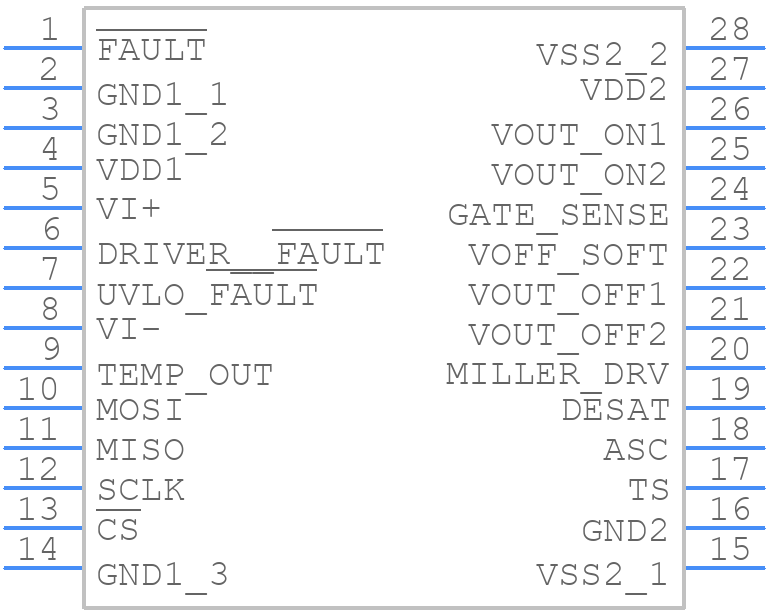

ADUM4177WBRNZ Details

• Manufacturer Part Number:

  ADUM4177WBRNZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

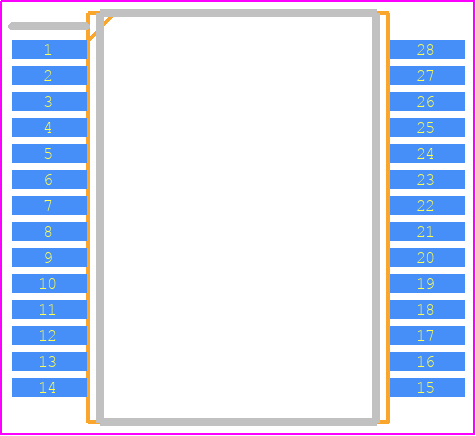

• Package Description:

  SOIC-28

• Pin Count:

  28

• Manufacturer Package Code:

  RN-28-1

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G28

• Length:

  10.2 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  TOTEM-POLE

• Output Peak Current Limit-Nom:

  40 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Packing Method:

  TUBE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.64 mm

• Supply Voltage-Max:

  7 V

• Supply Voltage-Min:

  4.4 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  23 V

• Supply Voltage1-Min:

  12 V

• Supply Voltage1-Nom:

  18 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  140 µs

• Turn-on Time:

  140 µs

• Width:

  7.5 mm
