ADUM4190TRIZ-EP - Analog Devices

Description: Isolation Amplifiers 5kV High Stability Isolated Error Amp

Download ADUM4190TRIZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

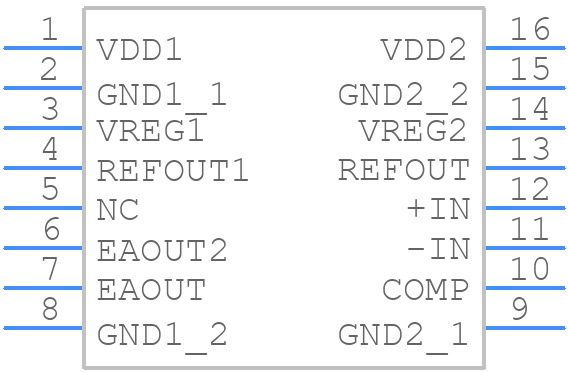

Symbol
ADUM4190TRIZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4190TRIZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)-ren1
click to zoom
3D Models
ADUM4190TRIZ-EP - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)-ren1
click to zoom

ADUM4190TRIZ-EP Details

  • Manufacturer Part Number:

    ADUM4190TRIZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.4 MHz

  • Common Mode Voltage-Max:

    1.5 V

  • Isolation Voltage-Min:

    5000 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.75 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    24 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    1.17

  • Voltage Gain-Min:

    0.83

  • Width:

    7.5 mm

ADUM4190TRIZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4190TRIZ-EP involves keeping the digital and analog grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM4190TRIZ-EP in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources.
  • The ADUM4190TRIZ-EP has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device pins.
  • No, the ADUM4190TRIZ-EP is designed for isolated power supply applications and should not be used in non-isolated designs. Using it in a non-isolated design can compromise the safety and reliability of the system.
  • The recommended input voltage range for the ADUM4190TRIZ-EP is 3.15 V to 5.5 V. Operating the device outside of this range can affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4190TRIZ-EP Overview

Use the download button to access the ADUM4190TRIZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as Isolation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
