ADUM4195-1BRIZ-R7 - Analog Devices

Description: Isolated Amplifier with Fixed Gain and Single-Ended Output

Download ADUM4195-1BRIZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

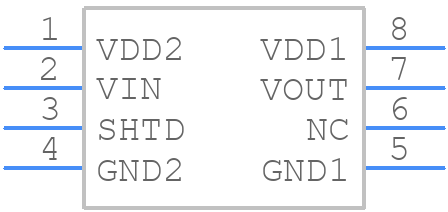

Symbol
ADUM4195-1BRIZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4195-1BRIZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-8-1
click to zoom
3D Models
ADUM4195-1BRIZ-R7 - Analog Devices - 3D model - Small Outline Packages - RI-8-1
click to zoom

ADUM4195-1BRIZ-R7 Details

  • Manufacturer Part Number:

    ADUM4195-1BRIZ-R7

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC INCREASED CREEPAGE

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC INCREASED CREEPAGE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-01-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.21 MHz

  • Isolation Voltage-Min:

    5000 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    4.9 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.85 mm

ADUM4195-1BRIZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4195-1BRIZ-R7 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce common-mode noise.
  • To ensure reliable operation of the ADUM4195-1BRIZ-R7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The ADUM4195-1BRIZ-R7 can support data rates of up to 150 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achievable may depend on the specific application, PCB layout, and signal integrity.
  • To troubleshoot issues with the ADUM4195-1BRIZ-R7, start by checking the power supply and input/output signals for proper voltage levels and signal integrity. Use oscilloscopes or logic analyzers to verify signal waveforms and timing. Also, check the PCB layout for any potential issues, such as noise coupling or signal reflections. If the problem persists, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.
  • Yes, the ADUM4195-1BRIZ-R7 is designed to meet the requirements of safety-critical applications, such as medical devices and industrial control systems. It has been certified to meet various safety standards, including IEC 60601-1, IEC 61010-1, and UL 1577. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific safety requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4195-1BRIZ-R7 Overview

Use the download button to access the ADUM4195-1BRIZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as Isolation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
