A good PCB layout for the ADUM4221-1CRIZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to place the device close to the signal sources to reduce noise and EMI.
To ensure reliable operation of the ADUM4221-1CRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C) and derated according to the thermal derating curve provided in the datasheet.
Common failure modes of the ADUM4221-1CRIZ-RL include overvoltage, overcurrent, and excessive temperature. To mitigate these failure modes, it's essential to follow proper design and layout practices, such as using voltage clamps, current limiting resistors, and thermal protection devices. Additionally, the device should be operated within its specified ratings and derated according to the application requirements.
To troubleshoot issues with the ADUM4221-1CRIZ-RL, it's essential to follow a systematic approach, such as checking the power supply, signal integrity, and PCB layout. Additionally, using diagnostic tools, such as oscilloscopes and logic analyzers, can help identify the root cause of the issue. It's also recommended to consult the datasheet, application notes, and technical support resources provided by Analog Devices Inc.
When using the ADUM4221-1CRIZ-RL in a safety-critical application, it's essential to follow proper design and verification practices, such as performing failure modes and effects analysis (FMEA), fault tree analysis (FTA), and safety integrity level (SIL) classification. Additionally, the device should be operated within its specified ratings and derated according to the application requirements, and redundant or fail-safe design practices should be implemented to ensure system reliability and safety.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADUM4221-1CRIZ-RL Overview

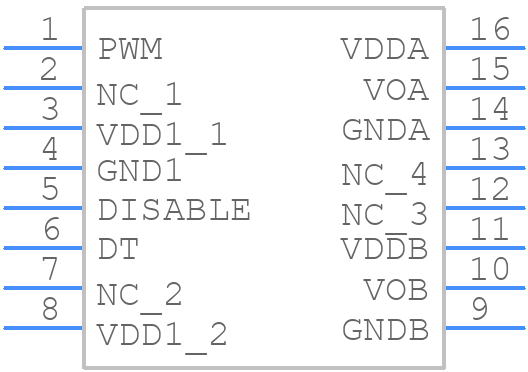

Use the download button to access the ADUM4221-1CRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4,
or try a keyword search, such as MOSFET Drivers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
