ADUM4221-1CRIZ - Analog Devices

Description: Gate Drivers Iso 1/2 Bridge Drv wPWM input UVLO 11.6V

Download ADUM4221-1CRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

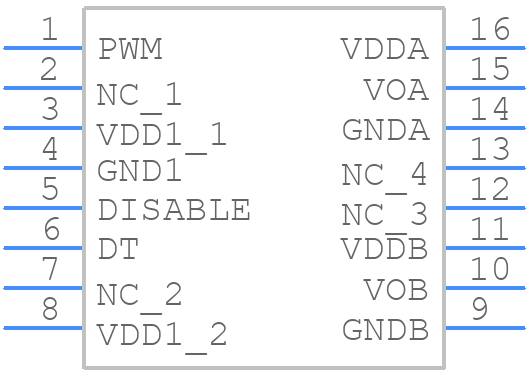

Symbol
ADUM4221-1CRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4221-1CRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-2_2023
click to zoom
3D Models
ADUM4221-1CRIZ - Analog Devices - 3D model - Small Outline Packages - RI-16-2_2023
click to zoom

ADUM4221-1CRIZ Details

  • Manufacturer Part Number:

    ADUM4221-1CRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-09-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.044 µs

  • Turn-on Time:

    0.033 µs

  • Width:

    7.5 mm

ADUM4221-1CRIZ Frequently Asked Questions (FAQs)

  • The ADUM4221-1CRIZ can support data rates up to 100 Mbps, but the actual data rate may be limited by the specific application and system design.
  • The ADUM4221-1CRIZ has built-in common-mode transient immunity and EMI filtering, which helps to reject high-frequency noise and transients. Additionally, the device's galvanic isolation provides an additional layer of protection against EMI.
  • Analog Devices recommends following good PCB design practices, such as keeping the signal traces short and away from noise sources, and using a solid ground plane to reduce EMI. The recommended spacing between the input and output sides of the isolator is at least 2 mm to maintain the isolation barrier.
  • The ADUM4221-1CRIZ is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
  • The ADUM4221-1CRIZ has a built-in power-up and power-down sequencing circuit that ensures the device powers up and down safely and correctly. However, it's still important to follow proper power-up and power-down sequencing in the system design to prevent damage to the device or other components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4221-1CRIZ Overview

Use the download button to access the ADUM4221-1CRIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as MOSFET Drivers
