Part Image

ADUM4221-2CRIZ-RL - Analog Devices

Description: Gate Drivers 1/2 Bridge Drv Iso Logic Input UVLO11.6V

Download ADUM4221-2CRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

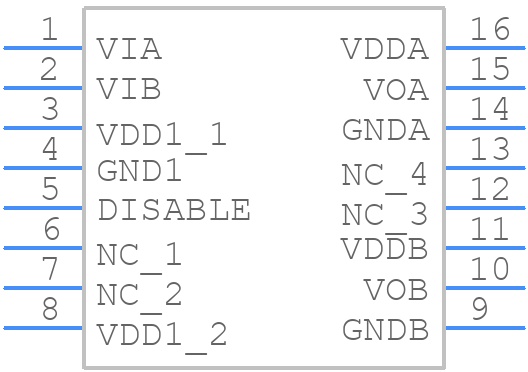

ADUM4221-2CRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4221-2CRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)-ren1
click to zoom
3D Models
ADUM4221-2CRIZ-RL - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)-ren1
click to zoom

ADUM4221-2CRIZ-RL Details

  • Manufacturer Part Number:

    ADUM4221-2CRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-09-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.044 µs

  • Turn-on Time:

    0.033 µs

  • Width:

    7.5 mm

ADUM4221-2CRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4221-2CRIZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to place the device close to the isolation boundary.
  • To ensure reliable operation of the ADUM4221-2CRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM4221-2CRIZ-RL can operate with a high common-mode voltage, but it's essential to ensure that the voltage does not exceed the device's maximum rating (2500 Vrms). Additionally, the device's common-mode transient immunity (CMTI) should be considered when designing the system, as high common-mode voltages can affect the device's performance.
  • To troubleshoot issues with the ADUM4221-2CRIZ-RL, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check for proper PCB layout and thermal management, and ensure that the device is not exposed to excessive voltage or current. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. support for further assistance.
  • The ADUM4221-2CRIZ-RL is designed to operate with high-frequency signals, but it's essential to consider the device's bandwidth and signal attenuation when designing the system. The device's signal propagation delay and jitter should also be taken into account, especially in high-speed applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4221-2CRIZ-RL Overview

Use the download button to access the ADUM4221-2CRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
