ADUM4221CRIZ-RL - Analog Devices

Description: Gate Drivers Iso 1/2 Bridge Drv w/Deadtime UVLO 11.6V

Download ADUM4221CRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

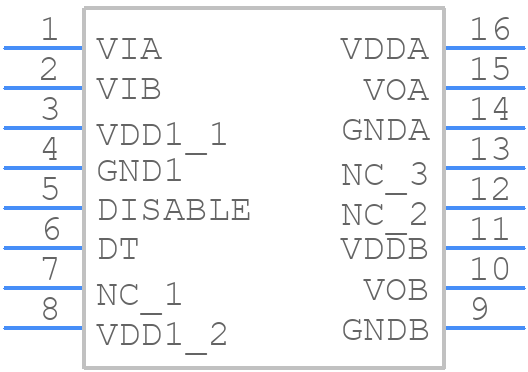

ADUM4221CRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4221CRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package with Increased Creepage [SOIC_IC] (RI-16-2) _2021
click to zoom
3D Models
ADUM4221CRIZ-RL - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package with Increased Creepage [SOIC_IC] (RI-16-2) _2021
click to zoom

ADUM4221CRIZ-RL Details

  • Manufacturer Part Number:

    ADUM4221CRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.044 µs

  • Turn-on Time:

    0.033 µs

  • Width:

    7.5 mm

ADUM4221CRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4221CRIZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM4221CRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM4221CRIZ-RL can support data rates up to 100 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
  • To troubleshoot issues with the ADUM4221CRIZ-RL, start by verifying the power supply and input signals, then check the PCB layout and signal integrity. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADUM4221CRIZ-RL is a general-purpose digital isolator and can be used in a variety of industrial communication applications, including PROFIBUS and DeviceNet. However, the specific implementation and compatibility depend on the system design and requirements. It's recommended to consult the datasheet and application notes for more information on using the ADUM4221CRIZ-RL in industrial communication applications.
