ADUM4224WARWZ-RL - Analog Devices

Description: Digital Isolator CMOS 2-CH 1Mbps Automotive 16-Pin SOIC W T/R

Download ADUM4224WARWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

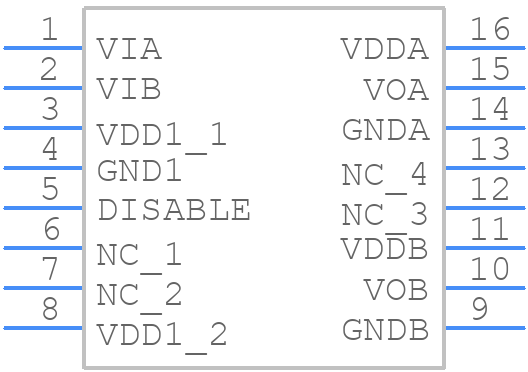

ADUM4224WARWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4224WARWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM4224WARWZ-RL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM4224WARWZ-RL Details

  • Manufacturer Part Number:

    ADUM4224WARWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Built-in Protections:

    THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.059 µs

  • Turn-on Time:

    0.059 µs

  • Width:

    7.5 mm

ADUM4224WARWZ-RL Frequently Asked Questions (FAQs)

  • The ADUM4224 can support data rates up to 100 Mbps, but the actual data rate may be limited by the specific application and system design.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range.
  • Yes, the ADUM4224 is a quad-channel isolator, which means it can provide isolation between four separate channels. This makes it suitable for applications that require multiple isolated channels, such as in industrial control systems or medical devices.
  • To troubleshoot issues with the ADUM4224, it is recommended to follow a systematic approach, such as checking the power supply, signal integrity, and system configuration. Additionally, using diagnostic tools such as oscilloscopes and logic analyzers can help identify the root cause of the issue.
  • The ADUM4224 is part of the iCoupler family of digital isolators from Analog Devices, and it is compatible with other devices in this family. However, it is recommended to check the specific datasheet and application notes for each device to ensure compatibility and proper operation.
