ADUM4400CRIZ-RL - Analog Devices

Description: 5 kV RMS Quad-Channel Digital Isolators

Download ADUM4400CRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

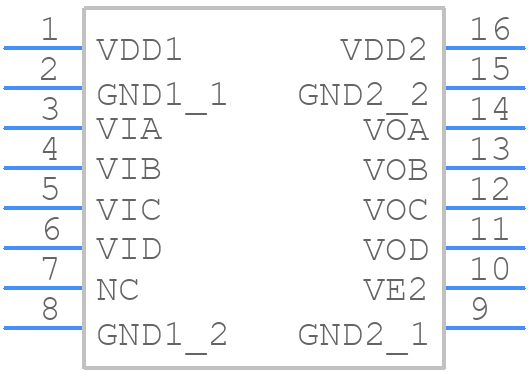

Symbol
ADUM4400CRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4400CRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2
click to zoom
3D Models
ADUM4400CRIZ-RL - Analog Devices - 3D model - Small Outline Packages - (RI-16-2
click to zoom

ADUM4400CRIZ-RL Details

  • Manufacturer Part Number:

    ADUM4400CRIZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:50.966

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM4400CRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4400CRIZ-RL involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM4400CRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The ADUM4400CRIZ-RL can support data rates of up to 150 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achieved may depend on the specific application, PCB layout, and system design.
  • Yes, the ADUM4400CRIZ-RL is designed to meet the requirements of safety-critical applications, such as those found in industrial, medical, and automotive systems. It has been certified to various safety standards, including UL 1577, IEC 60747-5-2, and DIN VDE 0884-11. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific safety requirements of the application.
  • To troubleshoot common issues with the ADUM4400CRIZ-RL, it's essential to follow a systematic approach, starting with a review of the PCB layout, power supply, and signal integrity. Check for proper termination, signal levels, and clock frequencies. Use oscilloscopes and logic analyzers to debug the signals and identify the root cause of the issue. Additionally, consult the device datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4400CRIZ-RL Overview

Use the download button to access the ADUM4400CRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
