ADUM4401WARWZ - Analog Devices

Description: Digital Isolators Quad-Ch 5kV Enhanced ESD Dig Isoltr

Download ADUM4401WARWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

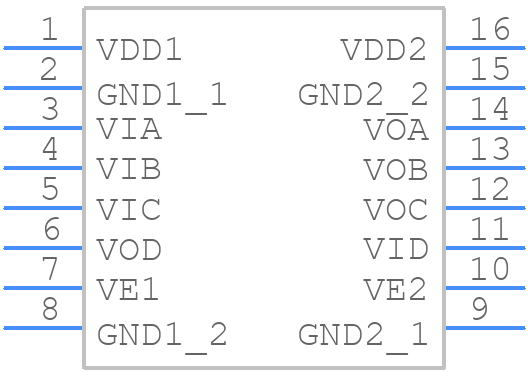

ADUM4401WARWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4401WARWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM4401WARWZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM4401WARWZ Details

  • Manufacturer Part Number:

    ADUM4401WARWZ

  • Source Url Status Check Date:

    2013-05-01 14:56:50.989

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM4401WARWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4401WARWZ involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce common-mode noise.
  • To ensure reliable operation of the ADUM4401WARWZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The ADUM4401WARWZ is designed to handle high common-mode voltages, but it's essential to ensure that the device is operated within its specified common-mode voltage range of ±350 V. Exceeding this range can lead to reduced isolation performance or even device failure. It's recommended to use proper filtering and shielding to minimize common-mode noise.
  • To troubleshoot issues with the ADUM4401WARWZ, start by verifying that the device is properly powered and that the input and output circuits are correctly connected. Check for any signs of physical damage or overheating. Use a oscilloscope to verify the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADUM4401WARWZ is designed to handle high-frequency signals, but it's essential to ensure that the device is operated within its specified frequency range of up to 150 Mbps. Exceeding this range can lead to reduced isolation performance or even device failure. It's recommended to use proper filtering and shielding to minimize high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4401WARWZ Overview

Use the download button to access the ADUM4401WARWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as Other Interface ICs
