ADUM5020-3BRWZ-RL - Analog Devices

Description: Low Emission 500 mW Isolated DC-to-DC Converter

Download ADUM5020-3BRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

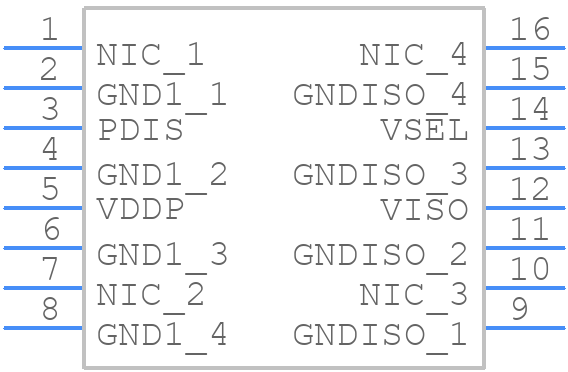

ADUM5020-3BRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM5020-3BRWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADUM5020-3BRWZ-RL
click to zoom
3D Models
ADUM5020-3BRWZ-RL - Analog Devices - 3D model - Small Outline Packages - ADUM5020-3BRWZ-RL
click to zoom

ADUM5020-3BRWZ-RL Details

  • Manufacturer Part Number:

    ADUM5020-3BRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Date Of Intro:

    2018-12-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-XDMA-G16

  • Length:

    10.3 mm

  • Load Regulation-Max:

    5%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.465 V

  • Output Voltage-Min:

    3.135 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    0.231 W

  • Trim/Adjustable Output:

    NO

  • Width:

    7.5 mm

ADUM5020-3BRWZ-RL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM5020-3BRWZ-RL is -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the input and output circuits, using ground planes, and minimizing trace lengths. Additionally, consider using shielding and filtering to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM5020-3BRWZ-RL is to power up the VDD1 and VDD2 supplies simultaneously, followed by the input signals. This ensures proper initialization of the device and prevents latch-up or other unexpected behavior.
  • Yes, the ADUM5020-3BRWZ-RL can be used in redundant or fault-tolerant systems. The device's dual-channel architecture and high common-mode rejection ratio (CMRR) make it suitable for applications requiring high reliability and fault tolerance.
  • To troubleshoot issues with the ADUM5020-3BRWZ-RL, start by verifying the power supply voltages, input signal integrity, and PCB layout. Check for proper termination, signal routing, and decoupling. Use oscilloscopes or logic analyzers to monitor the input and output signals. Consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM5020-3BRWZ-RL Overview

Use the download button to access the ADUM5020-3BRWZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM5, or try a keyword search, such as Power Supply Modules
