ADUM5210ARSZ-RL7 - Analog Devices

Description: Dual-Channel Isolators with Integrated DC-to-DC Converter (2/0 Channel Directionality)

Download ADUM5210ARSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

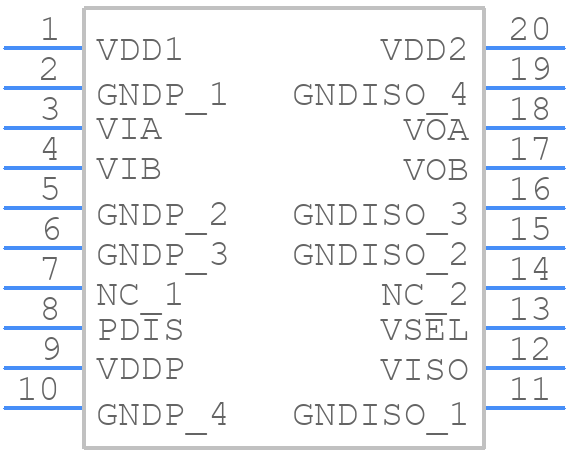

ADUM5210ARSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM5210ARSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RS-20)
click to zoom
3D Models
ADUM5210ARSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (RS-20)
click to zoom

ADUM5210ARSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM5210ARSZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:51.118

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    23 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    125000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADUM5210ARSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM5210ARSZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure reliable operation of the ADUM5210ARSZ-RL7 in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The device should be operated within its specified temperature range, and the junction temperature should be kept below 150°C.
  • The ADUM5210ARSZ-RL7 has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device pins. Additionally, the device should be powered down during assembly and testing to prevent damage from ESD events.
  • To troubleshoot issues with the ADUM5210ARSZ-RL7, start by verifying that the device is properly powered and configured. Check the input and output voltage levels, and ensure that the device is operating within its specified temperature range. Use a logic analyzer or oscilloscope to verify the digital signal integrity, and check for any signs of physical damage or contamination. If the issue persists, consult the datasheet and application notes for troubleshooting guidance, or contact Analog Devices support for further assistance.
  • When using the ADUM5210ARSZ-RL7 in a redundant or fault-tolerant system, it is essential to ensure that the device is properly configured and monitored. This includes implementing redundant power supplies, using multiple devices in parallel, and monitoring the device status and output voltage levels. Additionally, the system should be designed to detect and respond to device failures, such as by switching to a backup device or initiating a system reset.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM5210ARSZ-RL7 Overview

Use the download button to access the ADUM5210ARSZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM5, or try a keyword search, such as Switching Regulator or Controllers
