ADUM5410BRSZ-RL7 - Analog Devices

Description: General Purpose Digital Isolator 2500Vrms 4 Channel 150Mbps 75kV/µs CMTI 24-SSOP (0.209", 5.30mm Width)

Download ADUM5410BRSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

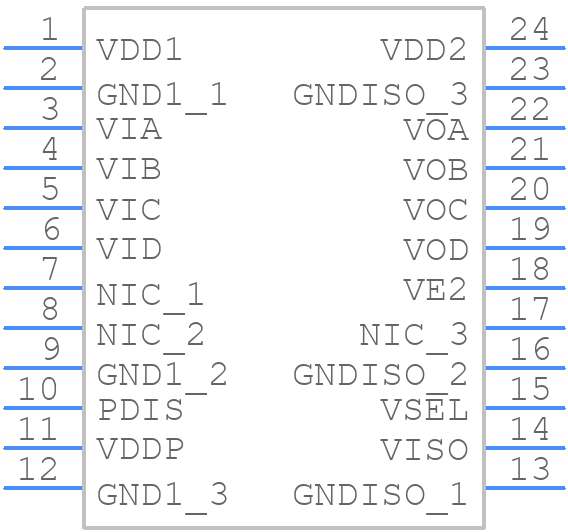

ADUM5410BRSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM5410BRSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-24 (SSOP)
click to zoom
3D Models
ADUM5410BRSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RS-24 (SSOP)
click to zoom

ADUM5410BRSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM5410BRSZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Date Of Intro:

    2016-07-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATE WITH 2.5V, 3.3V AND 5V SUPPLY VOLTAGE

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADUM5410BRSZ-RL7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM5410BRSZ-RL7 is -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the analog and digital grounds, using shielding, and minimizing trace lengths. Additionally, consider using noise-filtering components, such as capacitors or ferrite beads, to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM5410BRSZ-RL7 is to power up the VDD1 and VDD2 supplies simultaneously, followed by the VISO supply. This ensures proper initialization of the device and prevents potential latch-up conditions.
  • To troubleshoot issues with the ADUM5410BRSZ-RL7, start by verifying the power supply voltages, checking for proper connections and soldering, and ensuring that the device is operated within its recommended operating conditions. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADUM5410BRSZ-RL7 is a general-purpose digital isolator and is not specifically designed or certified for use in safety-critical applications. However, it can be used in such applications if proper design and testing procedures are followed to ensure the required level of safety and reliability. Consult with Analog Devices Inc. and relevant industry standards for guidance on using the ADUM5410BRSZ-RL7 in safety-critical applications.
