ADUM6028-3BRIZ - Analog Devices

Description: isoPower integrated, isolated dc-to-dc converter ► 100 mA output current for ADuM6020 ► 60 mA output current for ADuM6028 ► AEC-Q100 qualified for automotive applications ► Meets CISPR22 Class B emissions limits at full load on a 2‑layer PCB

Download ADUM6028-3BRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

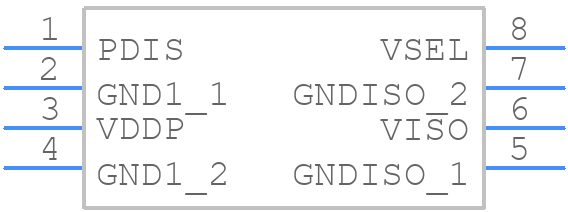

ADUM6028-3BRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6028-3BRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-8-1)
click to zoom
3D Models
ADUM6028-3BRIZ - Analog Devices - 3D model - Small Outline Packages - (RI-8-1)
click to zoom

ADUM6028-3BRIZ Details

  • Manufacturer Part Number:

    ADUM6028-3BRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Date Of Intro:

    2018-12-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Temperature Grade:

    AUTOMOTIVE

  • Time@Peak Reflow Temperature-Max (s):

    30

ADUM6028-3BRIZ Frequently Asked Questions (FAQs)

  • The ADUM6028-3BRIZ can support data rates up to 100 Mbps, but the actual data rate may vary depending on the specific application and system design.
  • The ADUM6028-3BRIZ has built-in common-mode transient immunity (CMTI) of 50 kV/μs, which helps to reject common-mode noise and transients. Additionally, the device has a high common-mode rejection ratio (CMRR) of 100 dB, which helps to reject common-mode noise.
  • The ADUM6028-3BRIZ has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the ADUM6028-3BRIZ is designed to meet the requirements of IEC 60601-1 and IEC 61508, making it suitable for use in safety-critical applications such as medical devices and industrial control systems.
  • The ADUM6028-3BRIZ has a built-in power-on reset (POR) circuit that ensures proper power-on and power-off sequencing, which helps to prevent damage to the device and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6028-3BRIZ Overview

Use the download button to access the ADUM6028-3BRIZ schematic symbol, PCB footprint, and 3D model.
