ADUM6028-5BRIZ - Analog Devices

Description: ► isoPower integrated, isolated dc-to-dc converter ► 100 mA output current for ADuM6020 ► 60 mA output current for ADuM6028 ► AEC-Q100 qualified for automotive applications ► Meets CISPR22 Class B emissions limits at full load on a 2‑layer PCB

Download ADUM6028-5BRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

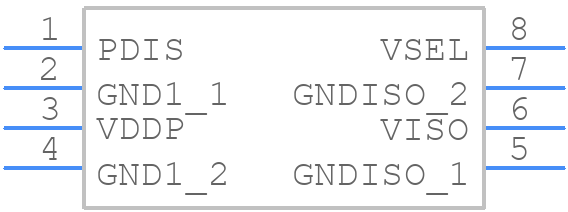

ADUM6028-5BRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6028-5BRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-8-1)
click to zoom
3D Models
ADUM6028-5BRIZ - Analog Devices - 3D model - Small Outline Packages - (RI-8-1)
click to zoom

ADUM6028-5BRIZ Details

  • Manufacturer Part Number:

    ADUM6028-5BRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Temperature Grade:

    AUTOMOTIVE

  • Time@Peak Reflow Temperature-Max (s):

    30
