Part Image

ADUM6028-5WBRIZ - Analog Devices

Description: isoPower integrated, isolated dc-to-dc converter ► 100 mA output current for ADuM6020 ► 60 mA output current for ADuM6028 ► AEC-Q100 qualified for automotive applications ► Meets CISPR22 Class B emissions limits at full load on a 2‑layer PCB

Download ADUM6028-5WBRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

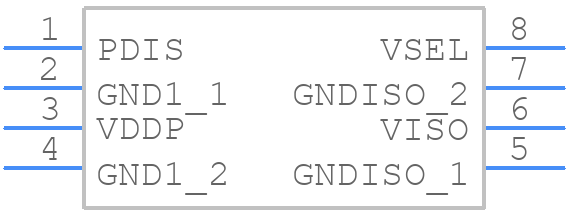

ADUM6028-5WBRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6028-5WBRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-8-1)
click to zoom
3D Models
ADUM6028-5WBRIZ - Analog Devices - 3D model - Small Outline Packages - (RI-8-1)
click to zoom

ADUM6028-5WBRIZ Details

  • Manufacturer Part Number:

    ADUM6028-5WBRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • ECCN Code:

    EAR99

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN

  • Efficiency (Main Output):

    33%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Load Regulation-Max:

    5%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.06 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Ripple Voltage (Main Out):

    0.02651 Vrms

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    0.3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    5.85 mm

ADUM6028-5WBRIZ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM6028-5WBRIZ is -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout and grounding techniques, such as separating the digital and analog grounds, and using shielding and filtering to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM6028-5WBRIZ is to power up the VDD1 and VDD2 supplies simultaneously, followed by the VISO supply. This ensures proper initialization of the device.
  • To troubleshoot issues with the ADUM6028-5WBRIZ, start by verifying the power supply voltages and ensuring that the device is properly configured. Check the datasheet for specific troubleshooting guidelines and use tools such as oscilloscopes and logic analyzers to debug the issue.
  • The ADUM6028-5WBRIZ is not certified for use in safety-critical applications. If you need a safety-certified isolator, consider using a device that is specifically designed and certified for safety-critical applications, such as the ADuM4223.
