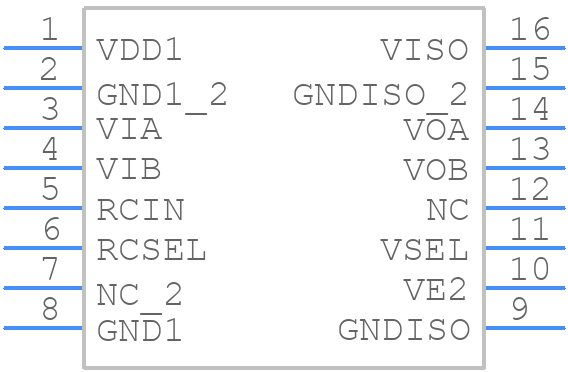

ADUM6200CRIZ - Analog Devices

ADUM6200CRIZ Details

• Manufacturer Part Number:

  ADUM6200CRIZ

• Source Url Status Check Date:

  2013-05-01 14:56:51.266

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  SOIC-16

• Pin Count:

  16

• Manufacturer Package Code:

  RI-16-1

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8543.70.99.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CSA, VDE

• Efficiency (Main Output):

  29%

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3 V

• Input Voltage-Nom:

  3.3 V

• JESD-30 Code:

  R-XDMA-G16

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Load Regulation-Max:

  5%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.04 A

• Output Voltage-Max:

  3.6 V

• Output Voltage-Min:

  3 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Ripple Voltage (Main Out):

  0.045955 Vrms

• Seated Height-Max:

  2.65 mm

• Surface Mount:

  YES

• Switching Frequency-Max:

  180000 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Power Output-Max:

  0.4 W

• Trim/Adjustable Output:

  YES

• Width:

  7.5 mm
